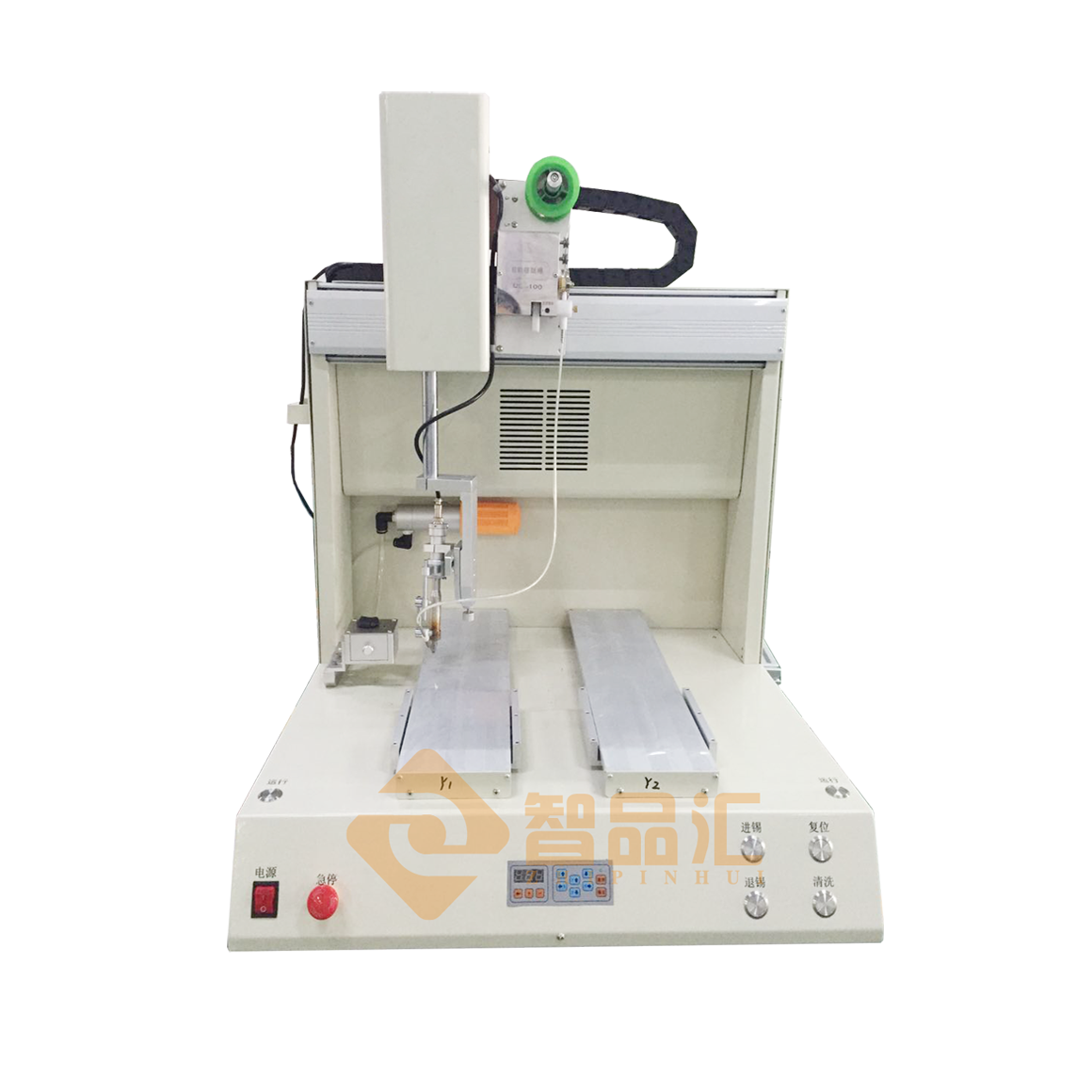

ZH-5331R臺式焊錫機Desktop Soldering Robot
焊錫機器人Soldering Robot | ZH-5331R 精準5軸Accurate 5-axis |
加工范圍Processing range X/Y1/Y2/Z/R | 500mm/300mm/300mm/100mm/<320°(可定制Customizable) |
Y軸平臺最大負載Y-axis platform maximum load | 15KG |
X/Y/Z軸移動速度XY/Z axis movement speed (mm/sec) | 0-1200 |
XYZ軸重復精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control mode | 工業控制卡Industrial Control Card |
編程方式Programming method | 示教盒Teaching box |
程序記錄容量Program recording capacity | 1000組程序1000 programs |
馬達系統Motor system | 步進級精密馬達Stepping precision motors |
傳動方式Transfer method | 同步帶+精密直線導軌Imported synchronous belt + precision linear guide rail |
焊臺功率Soldering station power | 大功率150W High power 150W |
溫度范圍Temperature range | 0-500° |
自動破錫器Automatic tin-breaker | 送錫精準.百分百破錫. Send tin precisely. 100% tin break. |
適用錫絲Applicable tin wire | 0.6-1.2MM |
專利型真空吸洗機構Patented vacuum suction mechanism | 錫渣回收方便Tin slag is easily recycled |
錫煙處理Tin smoke treatment | 抽煙系統Extraction System |
輸入電源Input power | AC220V(內部開關轉換Internal switch conversion) |
外形尺寸Dimensions | L680*W760*H820 |
機器重量Machine weight | 70KG |
功能特點Functional characteristics
1、 雙Y 連續工作，減少上下料等待時間。Double Y continuous work, reduce the waiting time for loading.
2、 工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.
3、 內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.
4、 專利型真空清洗烙鐵頭機構。The patented vacuum cleaning iron head mechanism .
5、焊錫錫煙可以根據通過管道排放或直接過濾，解決焊錫工種職業病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
6、 最新卡式定位或基子定位設計,拆裝容易,而且不會因?yàn)楦鼡Q烙鐵頭而使位置移動。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
7、自動焊錫機具有多組記憶程序,可依照不同的產品可分別作記憶。Automatic soldering machine has multiple sets of memory programs, which can be stored separately according to different products.
儀器售后政策：
*儀器保修期：一年
*售后電話：4008166687
我們提供部分設備的遠程安裝與調試，提供上門安裝維修服務，但收取一定的服務費；有基礎的我公司將免費提供技術指導，由需方調試安裝。
