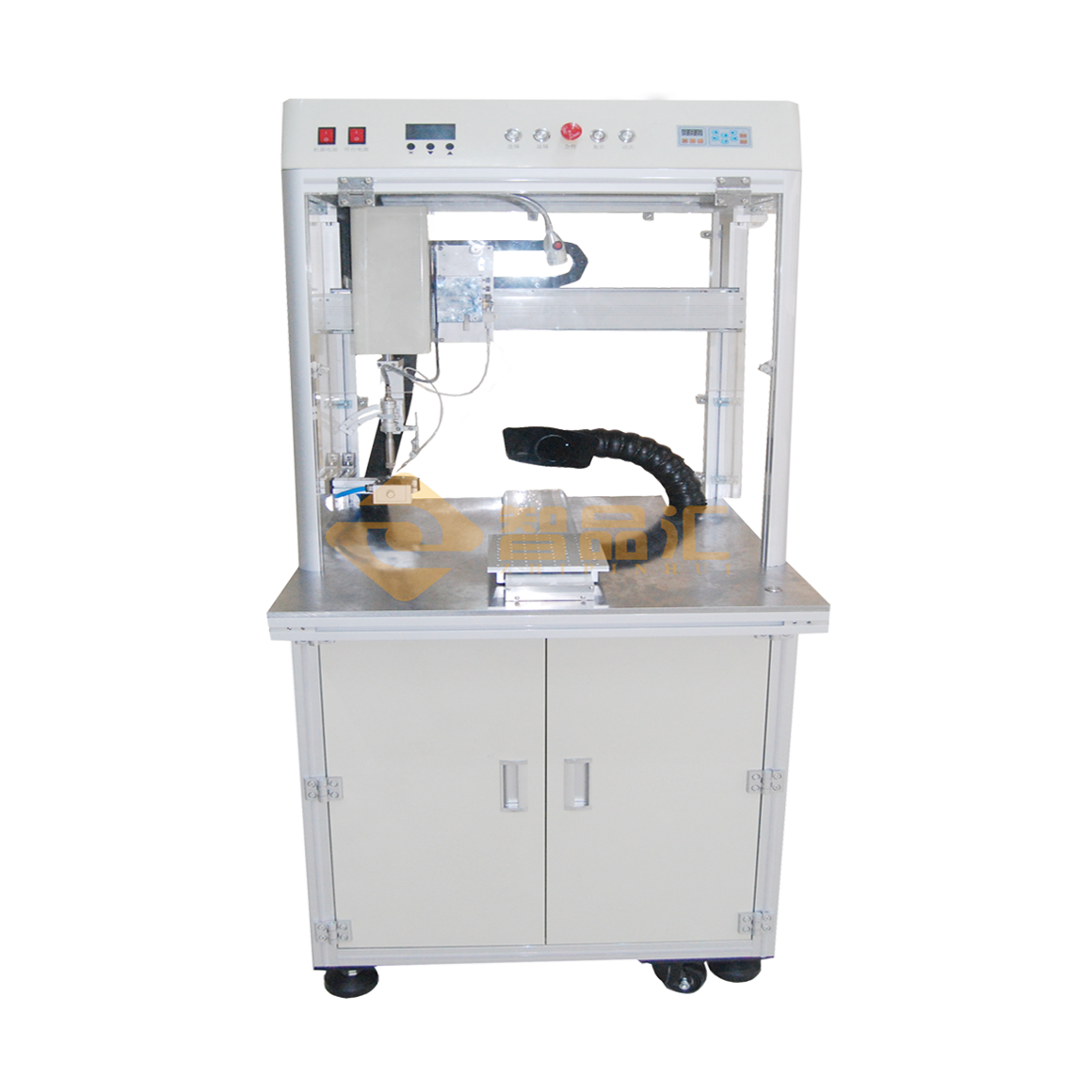

ZH-L331R立式環保型焊錫機Vertical Environmental Protection Soldering Robot
焊錫機器人Soldering Robot | ZH-L331R 立式精準4軸Vertical precision 4 axis |
加工范圍Processing range X/Y/ /Z/R | 300mm/300mm/100mm/<300°(可定制Customizable) |
Y軸平臺最大負載Y-axis platform maximum load | 15KG |
XY/Z軸移動速度XY/Z axis movement speed (mm/sec) | 0-1200 |
XYZ軸重復精度Axis Repeatability | <±0.02mm |
控制方式Programming method | 工業控制卡Industrial Control Card |
編程方式Program recording capacity | 示教盒Teaching box |
程序記錄容量Program recording capacity | 1000個程序1000 programs |
馬達系統Motor system | 步進級精密馬達Stepping precision motors |
傳動方式Transfer method | 進口同步帶+ HIWIN精密直線導軌Imported synchronous belt + precision linear guide rail |
焊臺功率Soldering station power | 大功率150W High power 150W |
溫度范圍Temperature range | 0-500° |
自動破錫器Automatic tin-breaker | 送錫精準.百分百破錫Send tin precisely. 100% tin break. |
適用錫絲Applicable tin wire | 0.6-1.2MM |
專利型真空吸洗機構Patented vacuum suction mechanism | 錫渣回收方便Tin slag is easily recycled |
錫煙處理Tin smoke treatment | 工業抽煙過濾器Industrial smoke filter |
輸入電源Input power | AC220V(內部開關轉換Internal switch conversion) |
工作環境溫度Working temperature | 5-40℃ |
外形尺寸Dimensions | L680*W510*H820 |
機器重量Machine weight | 60KG |
功能特點Functional characteristics
1、 單Y、雙Y 根據加載自動上料和下料機構，實現一只流作業。Single Y/double Y can be automatically loaded.
2、 工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.
3、 內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.
4、 專利型真空清洗烙鐵頭機構,解決傳統吹氣清洗所造成烙鐵頭上的殘錫無法清洗干凈而產生焊接不良或是焊點污穢，對機器清潔或錫渣回收更大提高。The patented vacuum cleaning iron head mechanism solves the problem that the residual tin on the soldering iron head caused by traditional blow cleaning cannot be cleaned, resulting in bad welding or solder joint contamination, and the machine cleaning or tin slag recovery capability is greatly improved.
5、焊錫錫煙直接過濾，解決焊錫工種職業病。Solder tin smoke can be eliminated through or directly filtered to solve occupational diseases in soldering jobs.
6、 最新卡式定位或基子定位設計,拆裝容易,而且不會因為更換烙鐵頭而使位置移動。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
7、自動焊錫機具有多組記憶程序,可依照不同的產品可分別作記憶。Automatic soldering machine has multiple sets of memory programs, which can be stored separately according to different products.
智品匯售后服務
設備售后政策：
*設備保修期：一年
*售后電話：4008166687
1、我司組建了一批有豐富經驗的現場工程師和高級技師，對設備出現的任何問題都能夠在最快的時間內做出反應，進行售后維護。
2、新產品交付一周內，我司售后技術部的工作人員會根據客戶提供的聯系方式和地址，到客戶所在地對設備進行安裝售后培訓工作。
3、所有有關于產品質量投訴，在1小時內經予答復，省內3~5小時、省外24~48小時內趕到現場，并根據投訴的情況確定處理措施，進行售后維護。
4、為更好的解決客戶的困難和疑慮，我司承諾所有維修人員隨叫隨到。
5、保質期內有關于產品質量引發的費用，由我司承擔。
6、保質期內由于貴方的使用不當，或者是自然環境造成的我方免費提供維修，維修所用的材料和配件均只收成本價。
